Six-voice polyphonic analogue synthesizer
XP60
The Xpander architecture, thoughtfully rebuilt for today.
Six analogue voices, the original modulation concept and carefully chosen refinements for contemporary studios.
Architecture
Faithful where
it matters.
XP60 carries the acclaimed voice architecture and modulation logic of the Oberheim Xpander into a newly built desktop instrument.
Two analogue oscillators, the versatile multimode filter and the deep modulation system form the familiar foundation. The signal path is centred on the AS3372 and tuned towards the character of later Rev D instruments.
The original dual-processor architecture preserves the way the instrument behaves, with 100% compatibility with Xplorer, the established SysEx editor for the Xpander. There is no software emulation and no FPGA recreation.
Interface & build
A familiar system, refined.

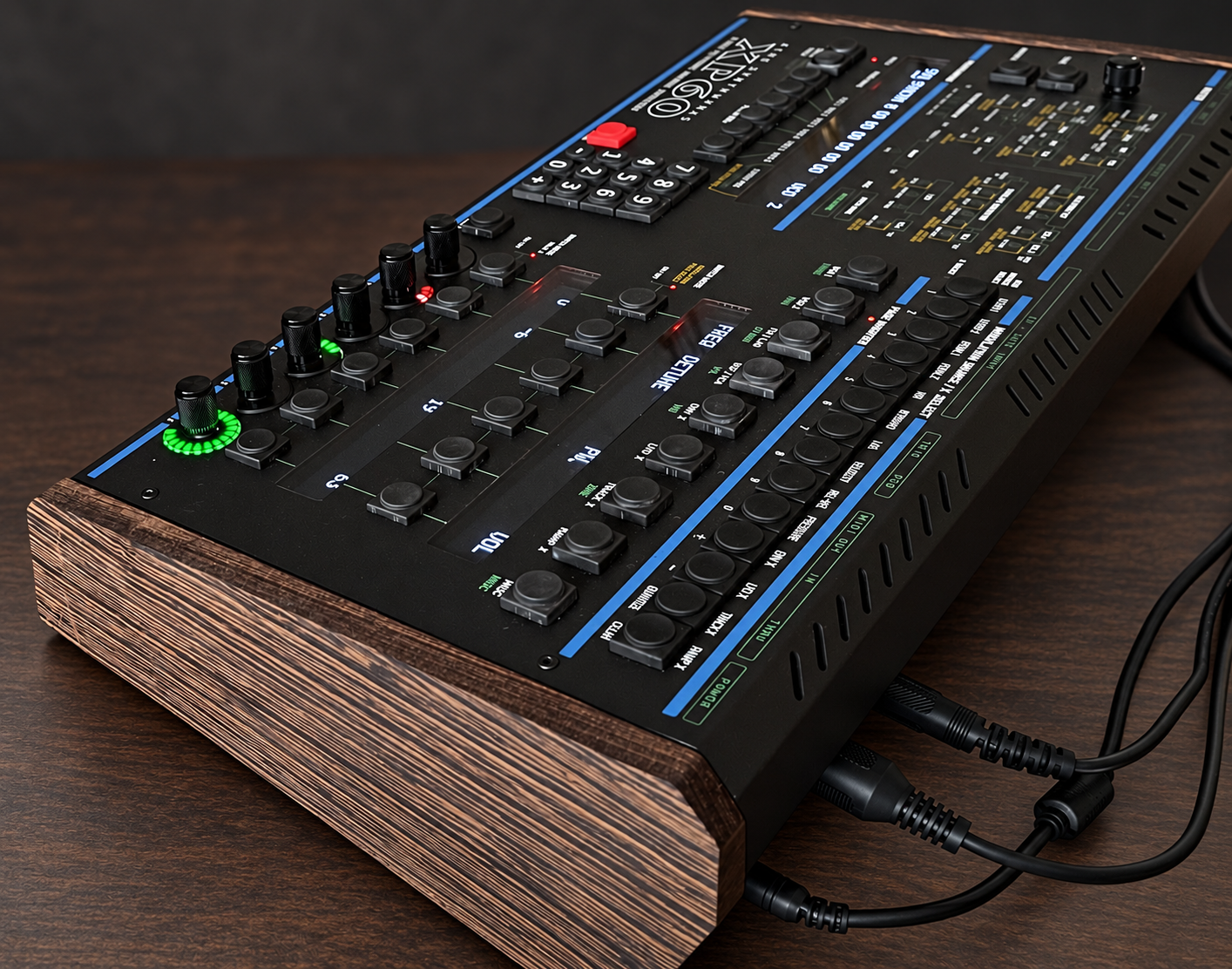

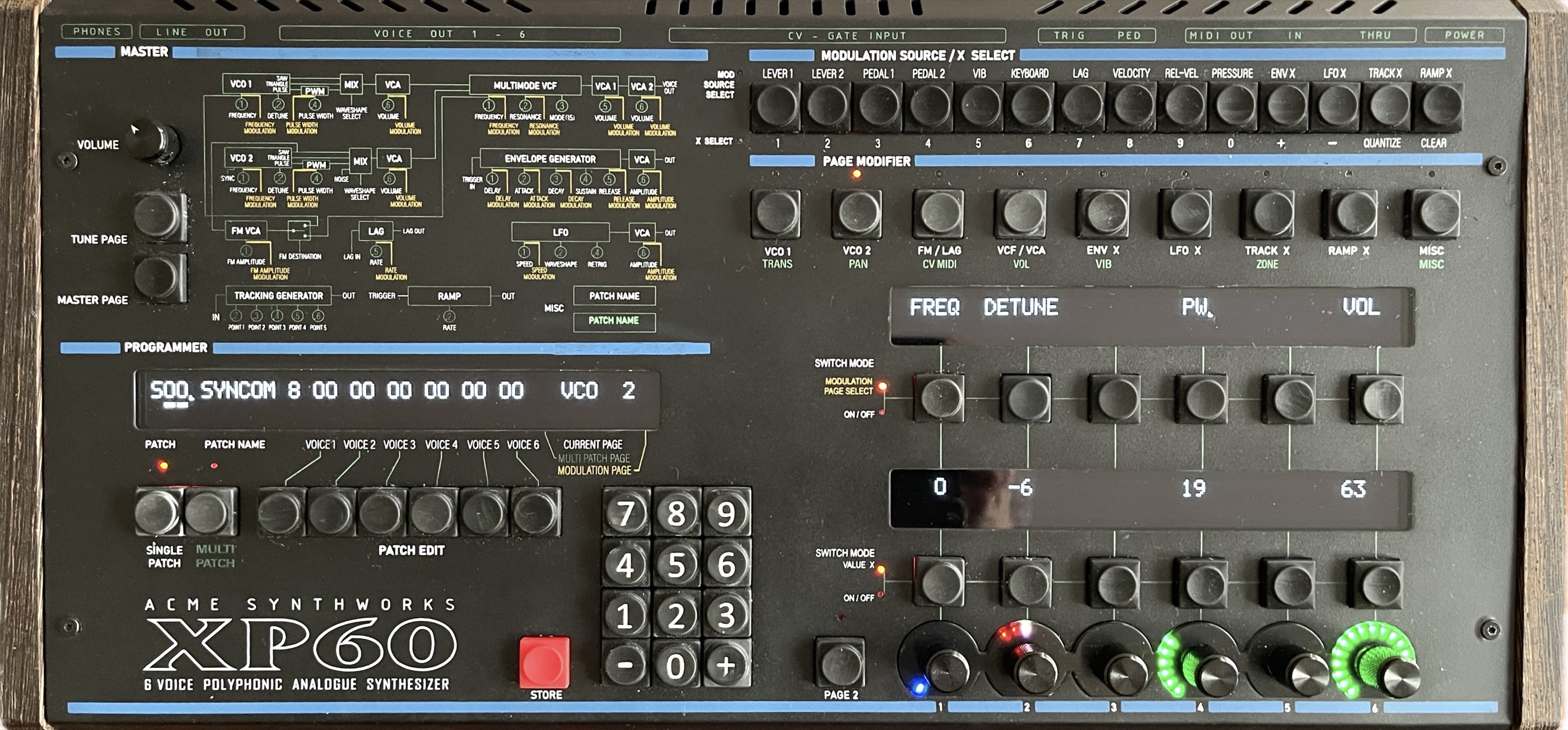

The original page-based workflow remains intact. Three displays, modern switches and tactile encoders make the dense architecture clear without diluting it.

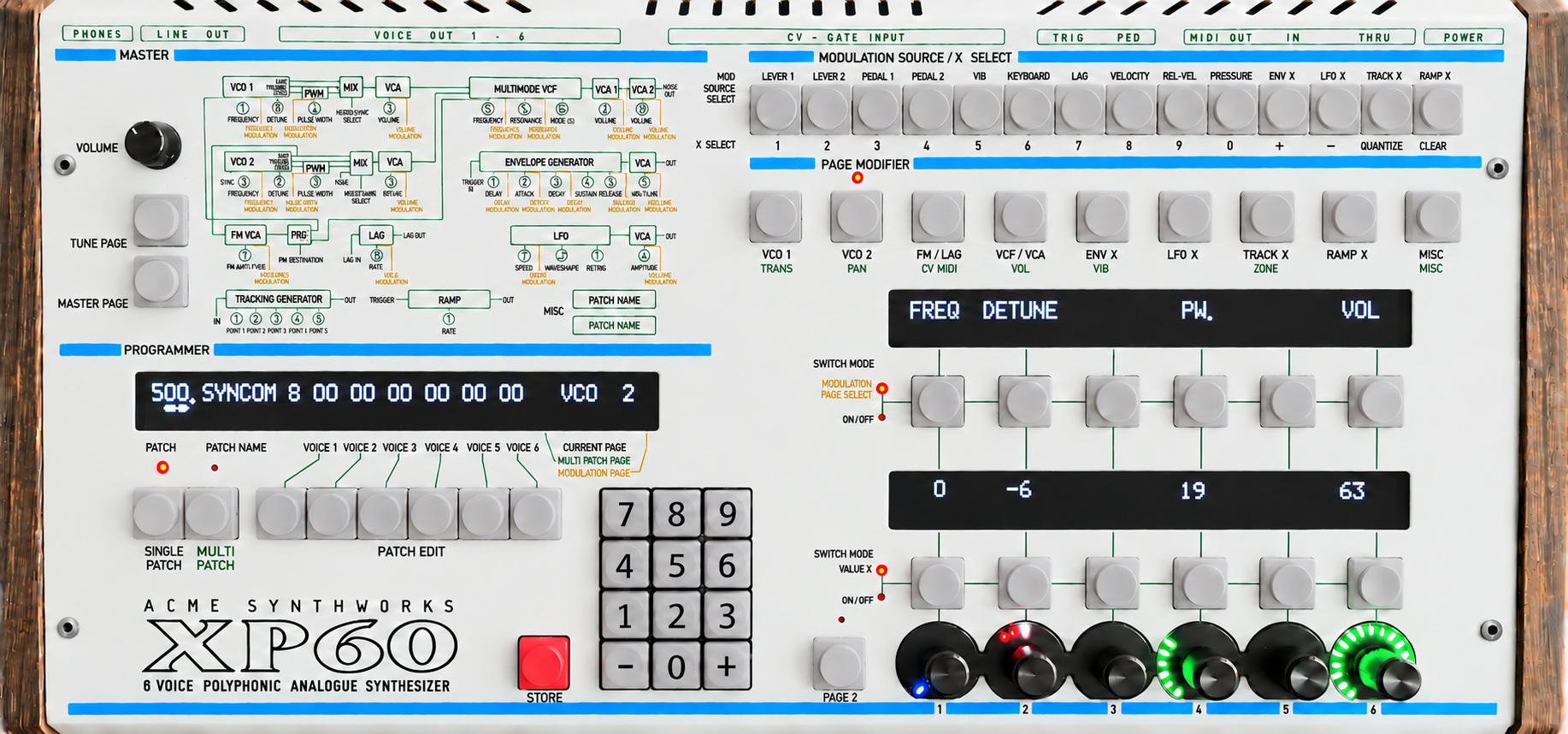

- Available enclosure colours
- Dark and Creamy White
- Display options
- OLED, VFD or LCD configurations
- Turbo Mode
- About 50% faster LFOs, LAGs and envelopes
- Headphone stage
- Dedicated amplifier with four gain settings
- Production
- Built in carefully controlled small batches
Studio footprint
Smaller footprint.
Same depth.

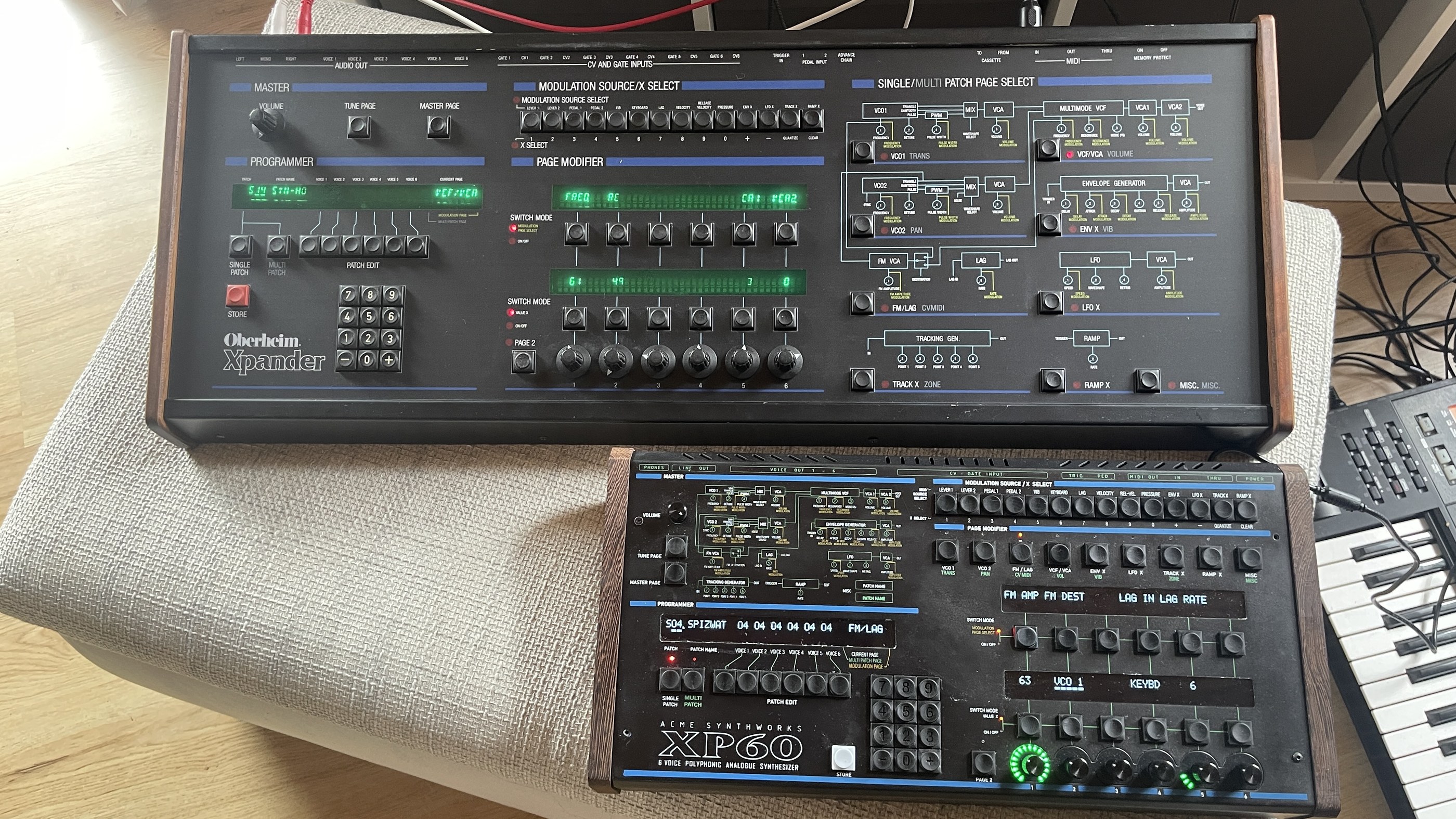

At 19 inches wide, XP60 brings the full six-voice architecture to a purposeful desktop format—substantially more compact than the instrument that inspired it.
Connectivity

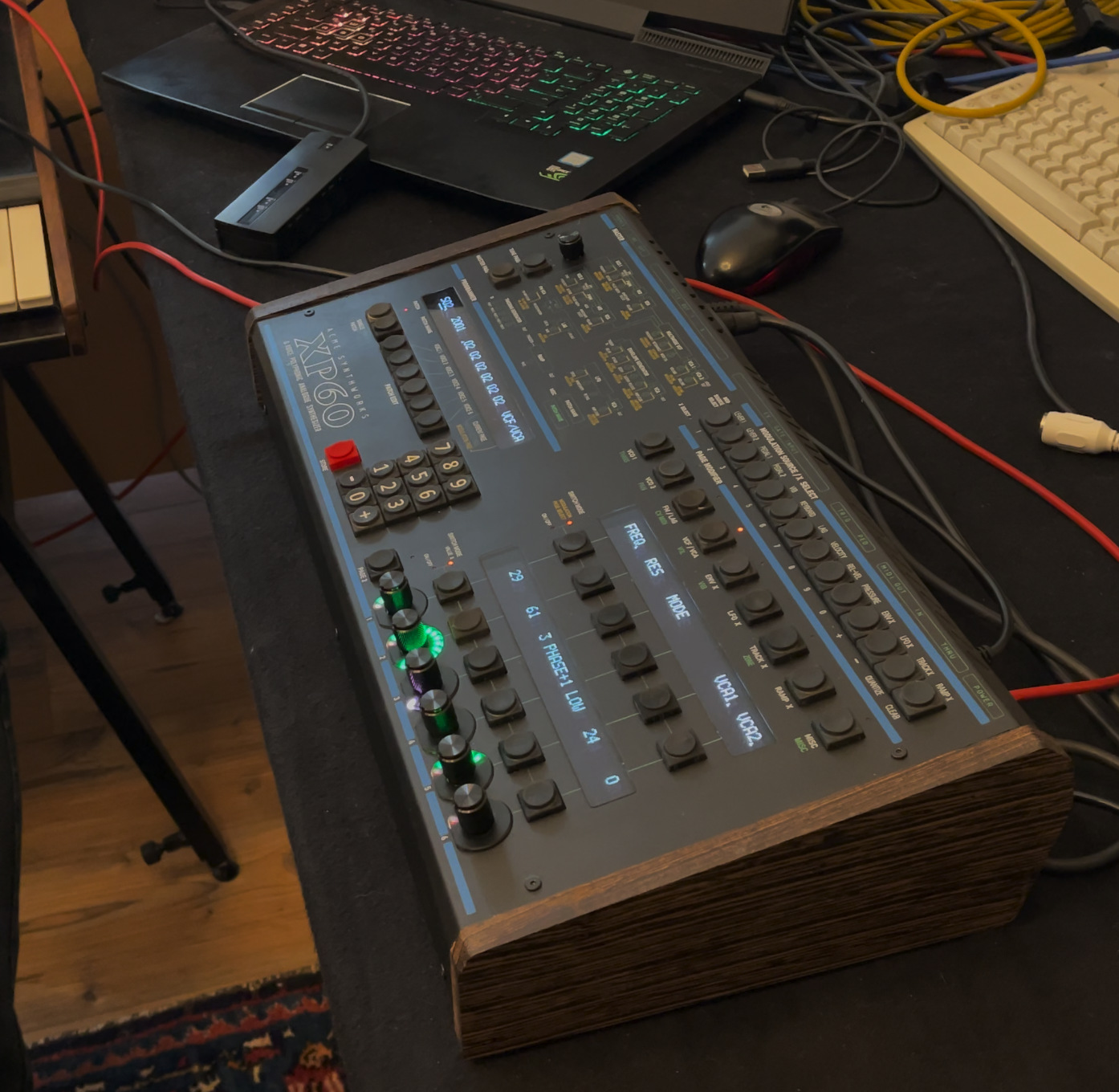

Built to belong in a working studio.

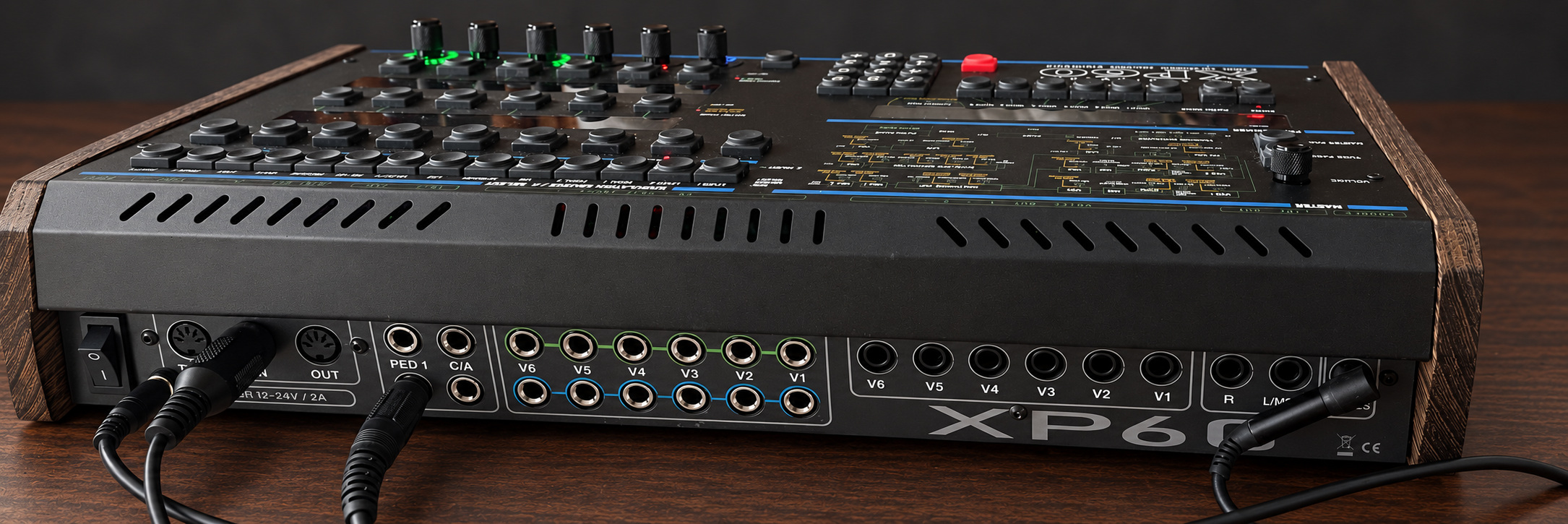

Individual voice outputs and extensive control connections allow the XP60 to sit at the centre of a modern or vintage setup.
- MIDI In / Out / Thru
- Six individual voice outputs
- CV and Gate inputs per voice
- Stereo / mono line outputs
- Headphones, trigger and pedal inputs
Independent instrument making
Made with intent,
in small batches.
XP60 is a specialist instrument for musicians and studios who know why this architecture matters. Every unit is assembled with close attention to calibration, feel and long-term serviceability.
Preorder
Your next
instrument.
Preorder the XP60 through the ACME Synthworks webshop. Deliveries begin in early October 2026.
Choose your enclosure colour and display option, and view full pricing on the product page.
50% deposit. The remaining balance and shipping costs are payable before dispatch.
Stay informed
Stay connected
with the XP60.
Join the non-binding interest list for development updates, availability and final configuration details. No order and no payment are required.
